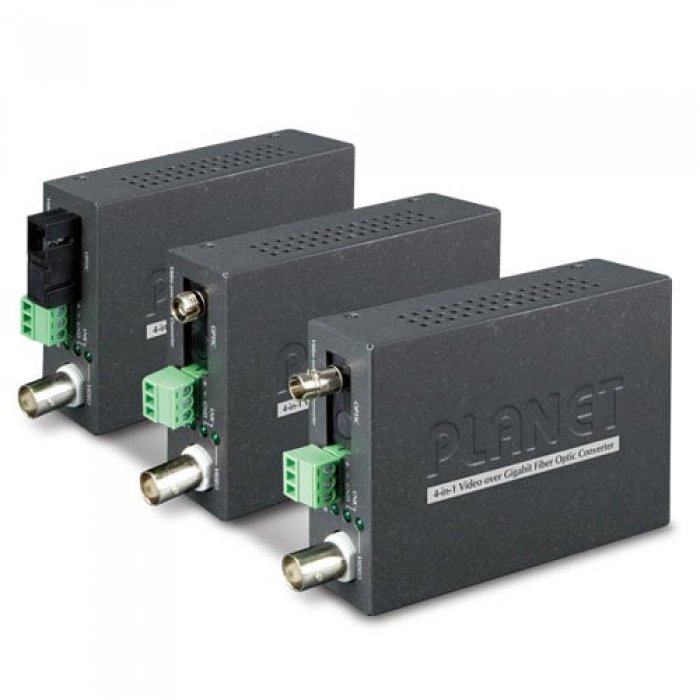

PLANET VF-101G-KIT 1-Channel 4-in-1 Video over Gigabit Fiber Bundle Kit

Long Distance Analog Surveillance Transmission System To deploy AHD/CVI/TVI/CVBS analog camera in a remote place efficiently and provide high video quality and reliable signal, PLANET has developed the video over Gigabit fiber media converter kit, VF-101G/102G/106G-KIT, which is ideal for extending the distance and signal conversion by transmitting the AHD/CVI/TVI/CVBS video and data over the fiber-optic cable. Adopting the intelligent encoding/decoding technology and with the compact box, the VF-101G/102G/106G-KIT video over fiber media converter enables videos to be delivered in high quality over a distance of up to 20km long.

Fiber Optic Communication for Video and Serial Data This Video over Gigabit Fiber Converter kit consists of a Video Transmitter and a Video Receiver: VF-101G/102G/106G-T: 1-channel Video over Gigabit Fiber Transmitter VF-101G/102G/106G-R: 1-channel Video over Gigabit Fiber Receiver Model Name Video Type Fiber Speed Optical Distance Optical Connector VF-101G AHD/TVI/CVI/CVBS 1.25G/84M 20km in single mode ST VF-102G FC VF-106G WDM-SC

The VF-101G/102G/106G-KIT is a digital fiber-optic transmission system that brings users a cost-effective solution for transmission of 1 channel uncompressed digital video and one reverse RS485 async data over one single fiber cable. The VF-101G/102G/106G-KIT is an adjustable free device providing high-quality and real-time video transmission. It can be widely used in intelligent transportation systems (ITS), traffic surveillance, security monitoring, automation control, intelligent residential districts, etc.

Easy Installation Simply by Plug and Play, the installation of the VF-101G/102G/106G-KIT media conversion is quite easy. They can be used as a stand-alone unit or as a slide-in module to the PLANET Media Converter Chassis (MC-700, MC-1500 and MC-1500R). When working with the media converter chassis, the media converter chassis provides DC power to VF-101G/102G/106G-T or VF-101G/102G/106G-R to maintain the video over fiber-optic transmission system at the central location.



Χαρακτηριστικά Προϊόντων
Ελάχιστη Ποσότητα Παραγγελίας (Τεμάχια)	1
