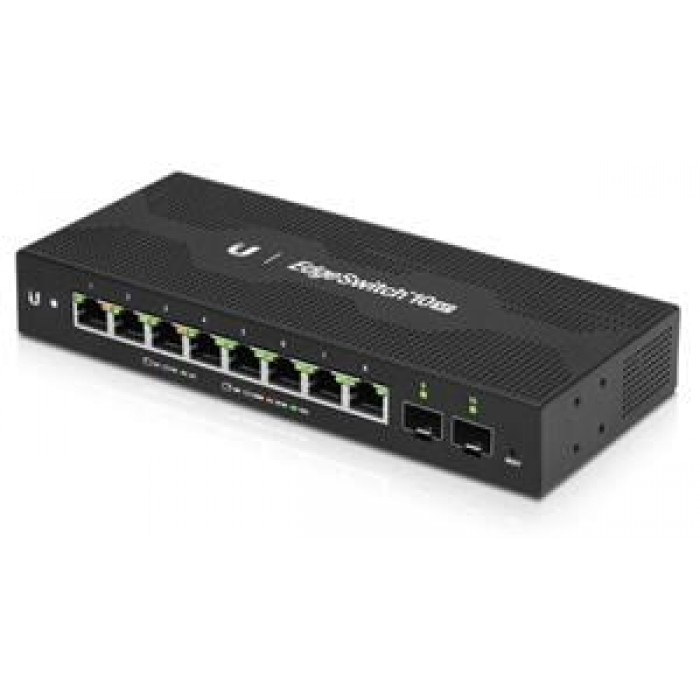

UBIQUITI ES-10X Edgeswitch 10X

Ideal for WISP applications, the EdgeSwitch 10X is our most affordable managed switch with SFP ports. Eight Gigabit RJ45 ports offer copper connectivity with PoE input on port 1 and PoE passthrough on port 8. Two SFP ports offer fiber connectivity. The browser-based configuration interface offers intuitive control using a redesigned UI. Management is also available through the Ubiquiti Network Management System (UNMS).

Key features

• (8) Gigabit RJ45 Ports
• (2) SFP Ports
• Support PoE Passthrough on Port 8 (software-selectable)
• Powered by 24V Passive PoE or External AC/DC Adapter
• Wall or Rack mountable (for rack mountig use optional ER-ERMKIT)

Package contains

• Device
• Power adapter 24V / 1A
• Power cord
• Screws

Technical parameters

Connectors and Interfaces
LAN speed:	(8) 10/100/1000Mbps
Gigabit LAN:	Yes
SFP/SFP+ speed:	(2) 1000Mbps
General
Packet forwarding rate [Mpps]:	14,9
Switchning capacity [Gbps]:	20
Physical characteristics
Design:	Desktop
Fanless:	Yes
Chassis design:	Metal
Buttons:	Reset
Operating temperature [°C]:	-10 up to 50
Weight [g]:	500
Depth [mm]:	90
Width [mm]:	207
Height [mm]:	31
Power
Max. power consumption [W]:	8
Power type:	DC connector, PoE
PoE type:	Input and Output
PoE standards:	Passive 24V
PoE Out ports:	1
Power via connector/terminal:	9 .. 30V DC
Software
Web management:	Yes
Features:	VLAN, QoS
Default IP address:	192.168.1.20
Default login and password:	ubnt / ubnt
