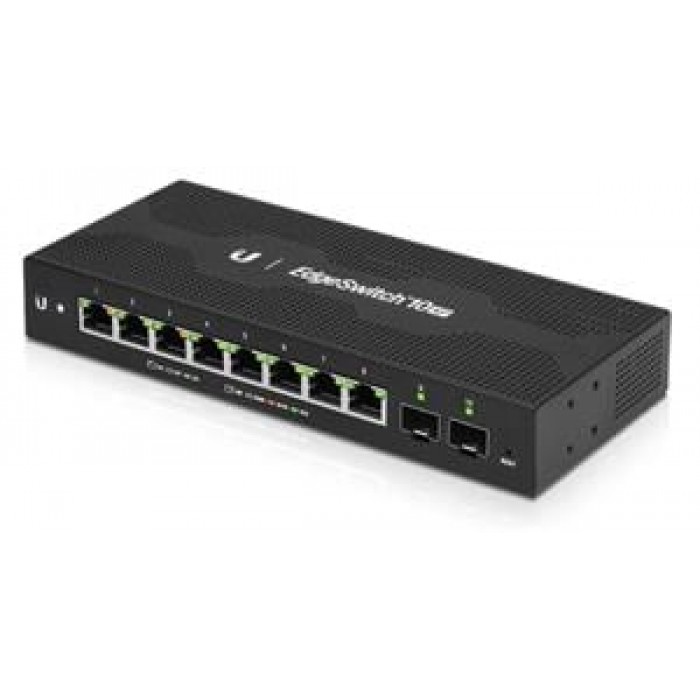

UBIQUITI ES-10XP Edgeswitch 10XP

The EdgeSwitch 10XP is the ideal WISP device for which it is the best affordable solution in the SFP managed POE switch category. The device is equipped with 8 Gigabit Ethernet ports. On all ports, the switch offers POE Out function. Thanks to the two SFP ports, there is no problem with optical connectivity. The redesigned web interface offers intuitive control. Device management is possible managed also over Ubiquiti Network Management System (UNMS).

Device properties

• (8) Gigabit RJ45 Ports
• (2) SFP Ports
• (8) POE Out ports
• Powering over external DC adapter
• Wall or Rack mountable (for rack mountig use optional ER-ERMKIT)

Package contains

• Device
• Power adapter 24V / 2.5A
• Power cord
• Screws

Technical parameters

Connectors and Interfaces
LAN speed:	(8) 10/100/1000Mbps
Gigabit LAN:	Yes
SFP/SFP+ speed:	(2) 1000Mbps
General
Packet forwarding rate [Mpps]:	14,9
Switchning capacity [Gbps]:	20
Physical characteristics
Design:	Desktop
Fanless:	Yes
Chassis design:	Metal
Buttons:	Reset
Operating temperature [°C]:	-10 up to 50
Weight [g]:	500
Depth [mm]:	90
Width [mm]:	207
Height [mm]:	31
Power
Max. power consumption [W]:	8
Power type:	DC connector
PoE type:	Output
PoE standards:	Passive 24V
PoE Out ports:	8
PoE budget [W]:	60
Power via connector/terminal:	9 .. 30V DC
Software
Web management:	Yes
Features:	VLAN, QoS
Default IP address:	192.168.1.20
Default login and password:	ubnt / ubnt
