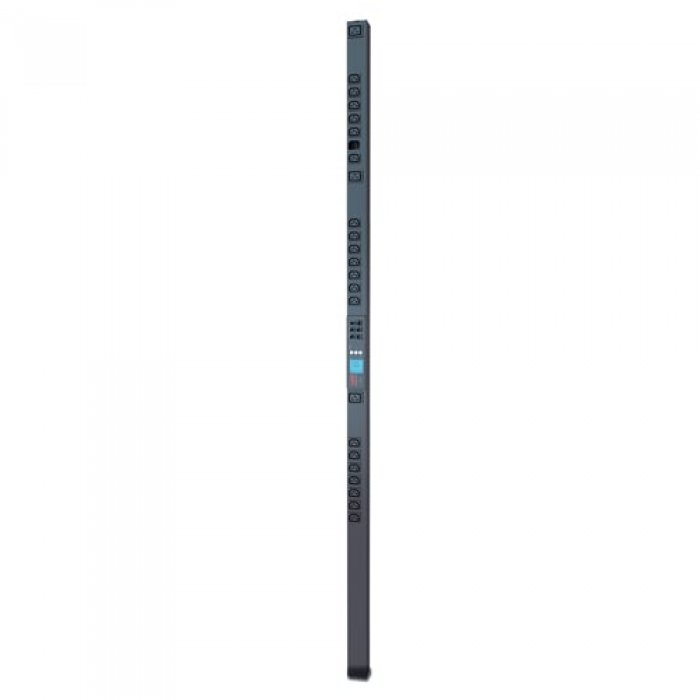

APC AP8459EU3 Rack PDU 2G Metered-by-Outlet ZeroU 16A 230V (21) C13 & (3) C19

AP8459EU3Features

Rack PDU 2G, Metered-by-Outlet, ZeroU, 16A, 230V, (21) C13 & (3) C19

APC Metered by Outlet Rack Power Distribution Units (PDUs) provide individual outlet power metering to enable energy optimization and circuit protection. Current metering provides real-time remote monitoring of connected loads. Metered by Outlet Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered by Outlet Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered by Outlet Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.

Includes : CAN Port Terminator , Installation guide , Rack Mounting brackets , Safety guide , Serial configuration cable

Output

• Nominal Output Voltage
  230V
• Maximum Total Current Draw
  16
• Output Connections
  (21) IEC 320 C13 (Battery Backup)

  (3) IEC 320 C19 (Battery Backup)

Input

• Nominal Input Voltage
  200V , 208V , 230V
• Input frequency
  50/60 Hz
• Input Connections
  IEC 309 16A 2P+E
• Cord Length
  3meters
• Acceptable Input Voltage
  100-240VAC
• Maximum Input Current
  16A

Physical

• Maximum Height
  1829mm , 182.9cm
• Maximum Width
  56mm , 5.6cm
• Maximum Depth
  51mm , 5.1cm
• Net Weight
  6.76kg
• Shipping weight
  9.03kg
• Shipping Height
  2037mm , 203.7cm
• Shipping Width
  163mm , 16.3cm
• Shipping Depth
  117mm , 11.7cm
• Color
  Black
• Units per Pallet
  48.0

Environmental

• Operating Environment
  -5 - 45 °C
• Operating Relative Humidity
  5 - 95 %
• Operating Elevation
  0-3000meters
• Storage Temperature
  -25 - 65 °C
• Storage Relative Humidity
  5 - 95 %
• Storage Elevation
  0-15000meters

Conformance

• Approvals
  EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC Part 15 Class A, ICES-003, UL Listed, VCCI Class A, VDE
• Standard warranty
  2 years repair or replace

Sustainable Offer Status

• RoHS
  Compliant
• REACH
  REACH: Contains No SVHCs
• Battery Directive
  Compliant
• Battery Notes
  ts_Battery_Notes
