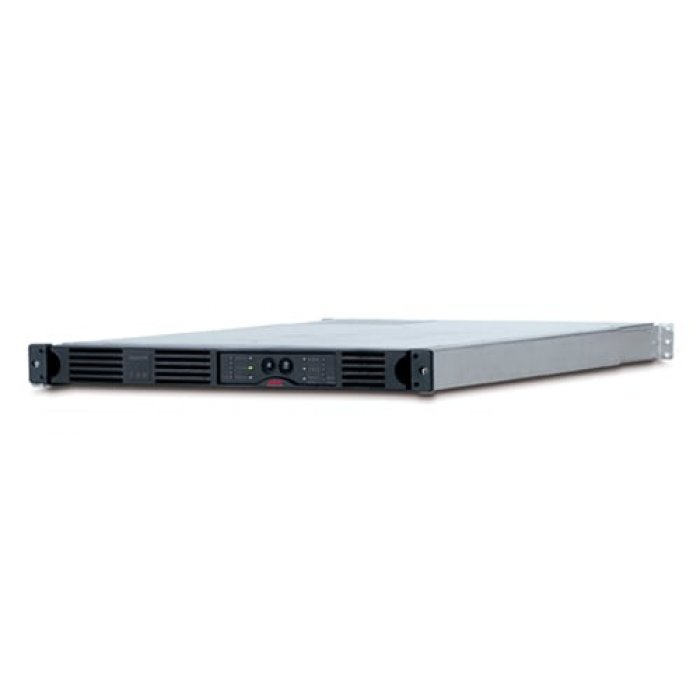

APC SUA750RMI1U APC Smart-UPS 750VA USB RM 1U 230V

SUA750RMI1UFeatures

APC Smart-UPS 750VA USB RM 1U 230V

Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.

Includes : CD with software , Rack Mounting Brackets , Rack Mounting support rails , Smart UPS signalling RS-232 cable , USB cable , User Manual

Output

• Output power capacity
  480Watts / 750VA
• Max Configurable Power (Watts)
  480Watts / 750VA
• Nominal Output Voltage
  230V
• Output Voltage Distortion
  Less than 5% at full load
• Output Frequency (sync to mains)
  47 - 53 Hz for 50 Hz nominal, 57 - 63 Hz for 60 Hz nominal
• Topology
  Line Interactive
• Waveform type
  Sine wave
• Output Connections
  (4) IEC 320 C13 (Battery Backup)

  (2) IEC Jumpers (Battery Backup)

Input

• Nominal Input Voltage
  230V
• Input frequency
  50/60 Hz +/- 3 Hz (auto sensing)
• Input Connections
  IEC-320 C14
• Input voltage range for main operations
  160 - 286V
• Input voltage adjustable range for mains operation
  151 - 302V
• Number of Power Cords
  1

Batteries & Runtime

• Battery type
  Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
• Typical recharge time
  2hour(s)
• Replacement Battery
  RBC34
• RBC Quantity
  1
• Battery Volt-Amp-Hour Capacity
  216
• Runtime
  View Runtime Graph
  View Runtime Chart

Communications & Management

• Interface Port(s)
  DB-9 RS-232 , SmartSlot , USB
• Control panel
  LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators
• Audible Alarm
  Alarm when on battery : distinctive low battery alarm : configurable delays
• Available SmartSlot™ Interface Quantity
  1

Surge Protection and Filtering

• Surge energy rating
  480Joules
• Filtering
  Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

• Maximum Height
  44mm , 4.4cm
• Maximum Width
  432mm , 43.2cm
• Maximum Depth
  660mm , 66.0cm
• Rack Height
  1U
• Net Weight
  21.82kg
• Shipping weight
  25.45kg
• Shipping Height
  191mm , 19.1cm
• Shipping Width
  559mm , 55.9cm
• Shipping Depth
  775mm , 77.5cm
• Color
  Black
• Units per Pallet
  8.0

Environmental

• Operating Environment
  0 - 40 °C
• Operating Relative Humidity
  0 - 95 %
• Operating Elevation
  0-3000meters
• Storage Temperature
  -15 - 45 °C
• Storage Relative Humidity
  0 - 95 %
• Storage Elevation
  0-15000meters
• Audible noise at 1 meter from surface of unit
  55.0dBA
• Online thermal dissipation
  130.0BTU/hr

Conformance

• Approvals
  C-tick, CE, EN 50091-1, EN 50091-2, GOST, VDE
• Standard warranty
  2 years repair or replace

Sustainable Offer Status

• RoHS
  Compliant
• PEP
  Available in Documentation tab
• EOLI
  Available in Documentation tab
• Other Environmental Compliance
  China RoHS
