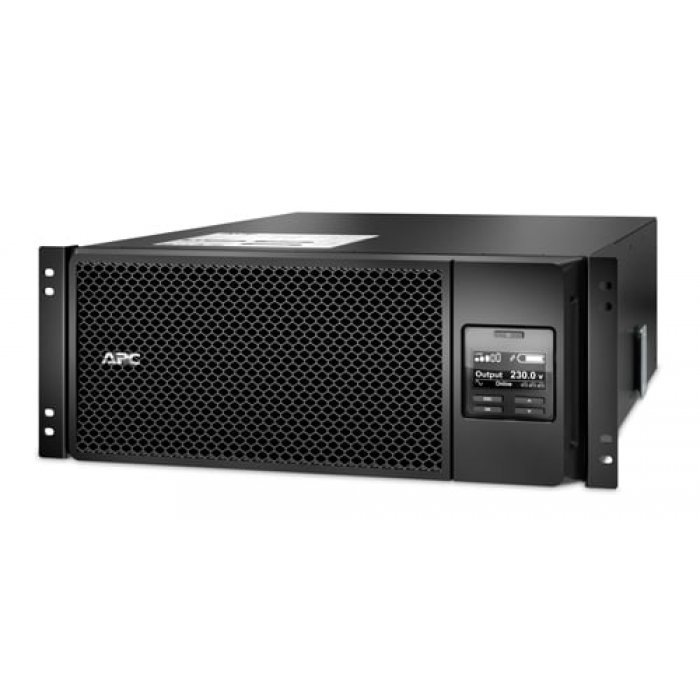

APC SRT6KRMXLI APC Smart-UPS SRT 6000VA RM 230V

SRT6KRMXLIFeatures

APC Smart-UPS SRT 6000VA RM 230V

High density, double-conversion on-line power protection with scalable runtime

Includes : CD with software , Installation guide , Rack Mounting brackets , Rack mounting hardware , Rack Mounting support rails , Temperature Probe , USB cable , Warranty card , Web/SNMP Management Card

Output

• Output power capacity
  6.0 KWatts / 6.0 kVA
• Max Configurable Power (Watts)
  6.0 KWatts / 6.0 kVA
• Nominal Output Voltage
  230V
• Output Voltage Distortion
  Less than 2%
• Output Frequency (sync to mains)
  50/60Hz +/- 3 Hz
• Other Output Voltages
  220, 240
• Load Crest Factor
  3 : 1
• Topology
  Double Conversion Online
• Waveform type
  Sine wave
• Output Connections
  (2) IEC Jumpers (Battery Backup)

  (4) IEC 320 C19 (Battery Backup)

  (1) Hard Wire 3-wire (H N + G) (Battery Backup)

  (6) IEC 320 C13 (Battery Backup)
• Bypass
  Internal Bypass (Automatic and Manual)

Input

• Nominal Input Voltage
  230V
• Input frequency
  40 - 70 Hz (auto sensing)
• Input Connections
  Hard Wire 3 wire (1PH+N+G)
• Input voltage range for main operations
  160 - 275V
• Input voltage adjustable range for mains operation
  100 - 275 (half load)V
• Other Input Voltages
  220, 240

Batteries & Runtime

• Battery type
  Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
• Typical recharge time
  1.5hour(s)
• Replacement Battery
  APCRBC140
• Expected Battery Life (years)
  3 - 5
• RBC Quantity
  1
• Extendable Run Time
  1
• Battery Volt-Amp-Hour Capacity
  902
• Extended Run Options
  APC-Smart-UPS-SRT-6000VA-RM-230V
• Runtime
  View Runtime Graph
  View Runtime Chart
• Efficiency
  View Efficiency Graph

Communications & Management

• Interface Port(s)
  RJ-45 10/100 Base-T , RJ-45 Serial , Smart-Slot , USB
• Control panel
  Multi-function LCD status and control console
• Audible Alarm
  Audible and visible alarms prioritized by severity
• Emergency Power Off (EPO)
  Yes
• Available SmartSlot™ Interface Quantity
  1

Surge Protection and Filtering

• Surge energy rating
  480Joules

Physical

• Maximum Height
  174mm , 17.4cm
• Maximum Width
  432mm , 43.2cm
• Maximum Depth
  719mm , 71.94cm
• Rack Height
  4U
• Net Weight
  60.0kg
• Shipping weight
  67.0kg
• Shipping Height
  370mm , 37.0cm
• Shipping Width
  610mm , 61.0cm
• Shipping Depth
  960mm , 96.0cm
• Color
  Black
• Units per Pallet
  6.0

Environmental

• Operating Environment
  0 - 40 °C
• Operating Relative Humidity
  0 - 95% non-condensing %
• Operating Elevation
  0-3000meters
• Storage Temperature
  -15 - 45 °C
• Storage Relative Humidity
  0 - 95% non-condensing %
• Storage Elevation
  0-15000meters
• Audible noise at 1 meter from surface of unit
  55.0dBA
• Online thermal dissipation
  1300.0BTU/hr
• Protection Class
  IP 20

Conformance

• Approvals
  CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, ENERGY STAR (EU), IRAM, RCM, VDE
• Standard warranty
  3 years repair or replace (excluding battery) and 2 years for battery

Sustainable Offer Status

• RoHS
  Compliant
• REACH
  REACH: Contains No SVHCs
