Grandstream GDS37xx Series IP Video Door System In-Wall Mounting Kit

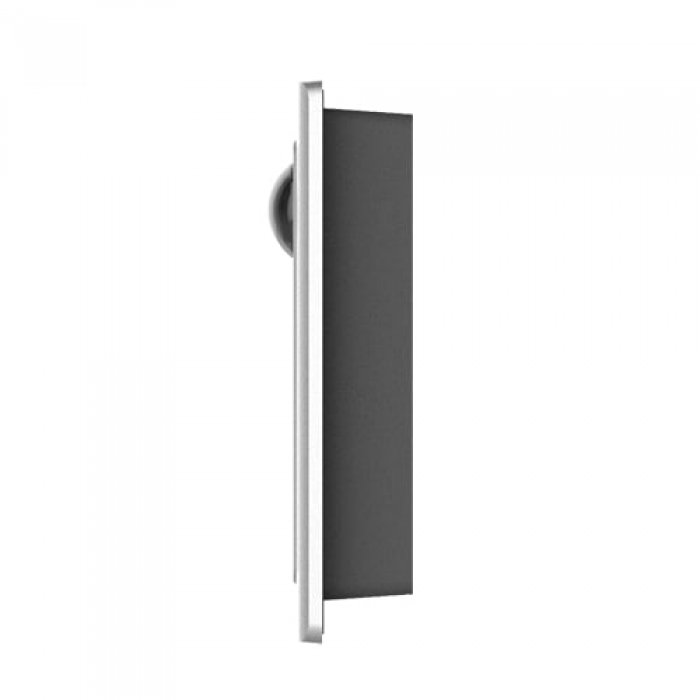

The In-Wall Mounting Kit is available for use with the GDS3710 IP Video Door Phone. This mounting kit allows the GDS3710 to be mounted flushed within a wall rather on the surface of the wall. It supports solid wall, stud and drywall (hollow wall) installation. When installing the GDS3710 or the In-Wall Mounting kit, please follow local building and electrical code. The device is suggested to be installed with the bottom of the device 50-55 inches above the ground.

Required In-Wall Space:
99.8mm (3,93 inches) x 193.88mm (7.63 inches), 35mm deep (1.38 inches)

Package Contents:

• 1 installation bracket

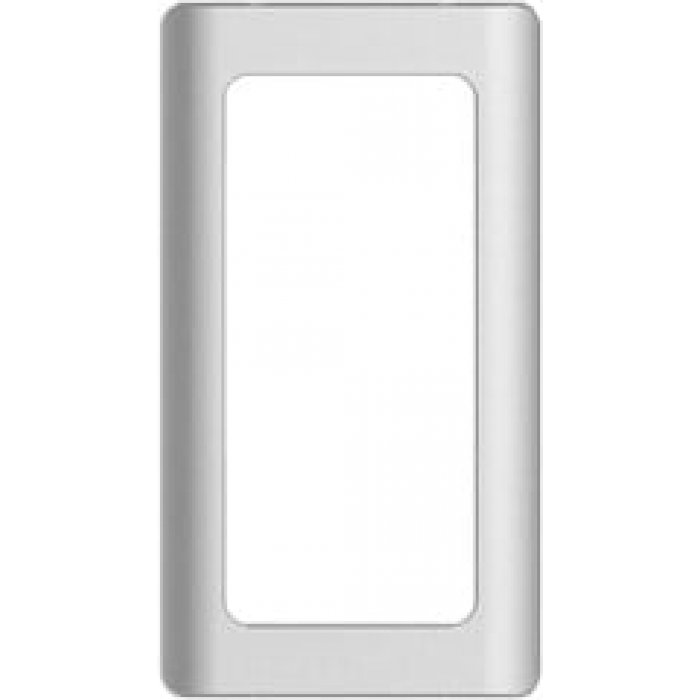

• 1 cover plate
• 1 plastic box
• 1 drill template
• Quick reference guide
• 1 metal frame
• 6 piece anchor and screw set
• 12 screws (2 different lengths)
• 12 nuts (2 different styles)
• 6 anti-tamper screws
• 1 anti-tamper hex key

Please Note:

GDS3710 IP Video Door Phone NOT Included

 Grandstream GDS37xx In-Wall Mounting Kit Ref. Guide

Χαρακτηριστικά Προϊόντων
Ελάχιστη Ποσότητα Παραγγελίας (Τεμάχια)	1
Εγγύηση (έτη)	2
